Highlights:

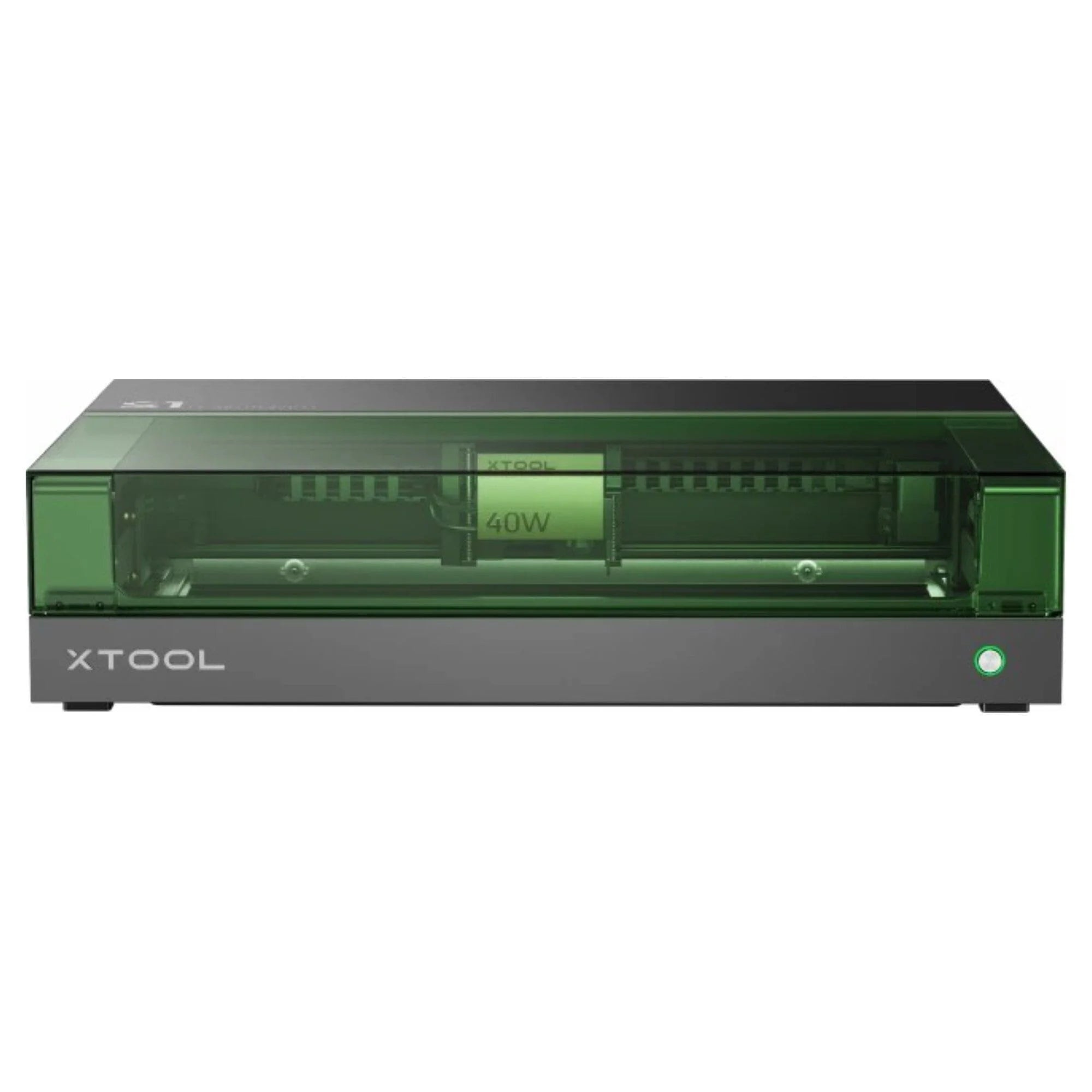

The xTool S1 basic package comes with the xTool S1 40W or 20W laser, a honeycomb panel, and an air assist feature. It's a Class 1 diode laser known for its high cutting efficiency and capabilities of reaching speeds up to 600mm/s. The device offers precise positioning, camera-assisted engraving, and is equipped to handle curved surface engraving. Additionally, available upgrade accessories further enhance its creative potential.
Which module should I choose - 40W or 20W?
If you are pursuing efficiency and have higher cutting requirements, please choose the 40W option; if you do more engraving jobs and have no demand for efficiency or cutting capabilities, then the 20W is suitable for you. Specifically, the 40W can cut 18mm cherry wood, 15mm dark opaque acrylic, and 0.1mm stainless steel in one pass, while the 20W can cut 10mm cherry wood, 8mm dark opaque acrylic, and 0.04mm stainless steel in one pass. However, the 20W has a smaller laser spot (0.06mm*0.08mm) than the 40W (0.08mm*0.10mm), which means it can produce finer engraving results.
What materials can be engraved or cut?
Technology Requirements/Specifications:
| - | xTool S1 40W Laser Machine | xTool S1 20W Laser Machine |
| Laser Power | 40W | 20W |
| Spot Size | 0.08*0.10 mm | 0.08*0.06 mm |
| Working Speed | 600 mm/s | 600 mm/s |
| Working Area | 498*319 mm | 498*330 mm |
| Output Voltage | 25V 11A | 24V 8A |
| Connection | USB/Wi-Fi | USB/Wi-Fi |
| Support XCS | Android, iOS, iPad, macOS, Windows 10+ | Android, iOS, iPad, macOS, Windows 10+ |
| Software | XCS/Lightburn | XCS/Lightburn |
| Support Files | SVG/DXF/JPG/JPEG/PNG/BMP/TIF | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| Product Weight | 20KG | 20KG |
| Product Size | 765*561*183 mm (excluding riser base) 765*561*268 mm (including riser base) | 765*561*183 mm (excluding riser base) 765*561*268 mm (including riser base) |
Special Notes and Considerations:
What are the differences between 40W, 20W, 10W, and 2W IR?
If you are pursuing efficiency and have higher cutting requirements, please choose the 40W option; if you do more engraving jobs and have no demand for efficiency or cutting capabilities, then the 20W is suitable for you. Specifically, the 40W can cut 18mm cherry wood, 15mm dark opaque acrylic, and 0.1mm stainless steel in one pass, while the 20W can cut 10mm cherry wood, 8mm dark opaque acrylic, and 0.04mm stainless steel in one pass. However, the 20W has a smaller laser spot (0.06mm*0.08mm) than the 40W (0.08mm*0.10mm), which means it can produce finer engraving results.
Material Differences: The right tool for the job
| - | 40W/20W/10W | 2W IR |
| Cutting Materials | Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic | - |
| Engraving Materials | Paper, Wood, Leather, MDF, Felt, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal | Metal, Plastic, Black Acrylic |
Thicker Cut: Maximum thickness of one cutting
| Material | 40W (Best) | 20W | 10W | 2W IR |
| Cherry Wood | 18mm | 10mm | 3mm | - |
| Basswood Plywood | 15mm | 10mm | 3mm | - |
| Walnut Wood | 15mm | 10mm | 3mm | - |
| Black Acrylic | 15mm | 8mm | 5mm | - |
| Stainless Metal | 0.1mm | 0.04mm | - | - |
Higher Efficiency: MAX cutting speed of one cutting
| Material | 40W (Best) | 20W | 10W | 2W IR |
| 3mm Basswood | 15mm/s | 7mm/s | 5mm/s | - |
| 6mm Basswood | 10mm/s | 4mm/s | - | - |
| 10mm Basswood | 6mm/s | 3mm/s | - | - |
Higher Precision: Fine engraving
| Laser Module | 40W | 20W | 10W | 2W IR (Best) |
| Spot Size | 0.08*0.10 mm | 0.08*0.06 mm | 0.06*0.04 mm | 0.03*0.03 mm |
