Product Description
xTool S1: Automatic Conveyor Feeder
- Grades: N/A
- Number of Students: N/A
- Number of Lessons: N/A
- Contact Hours: N/A
- Additional Resources:
Highlights:

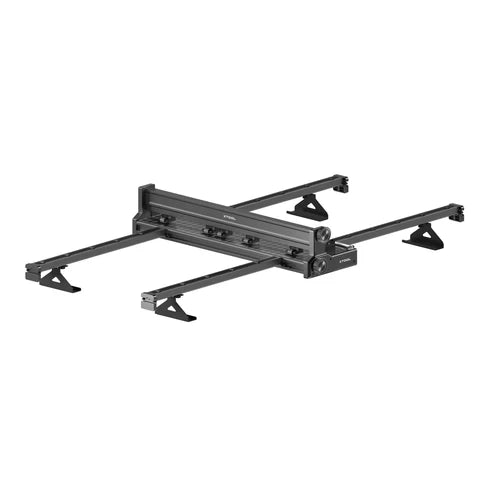

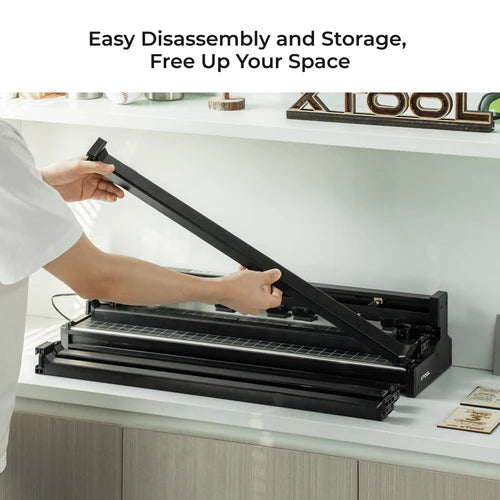

The xTool S1 Automatic Conveyor Feeder, designed for the xTool S1, boasts a large processing area of 118in by18.5in for batch engraving and cutting. It features automatic conveying, easy disassembly, and a metal short rail design for safety. Compatible with a wide range of materials, it offers precise positioning with aligning grids, adjustable pressure settings, and a knob for easy material adjustment.
- Extra Large Processing Area: The working area of 118''×18.5'', along with the S1 Conveyor Feeder, totally makes batch engraving and cutting much easier.

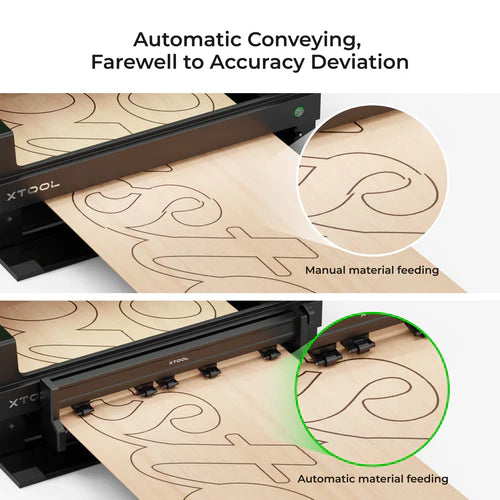

- Automatic Conveying: Automatic engraving path planning and material conveying; Farewell to manual material feeding and accuracy deviation.
- Creations Unrestrained By Materials: The material range is expanded from plywood, acrylic and fiberboard to soft materials like felt, cork and EVA.
- Pressing Wheels, High Stability: The upper and lower pressure wheels use anti-slip materials, and materials of various sizes can be easily fixed to prevent them from slipping or shifting during the conveying process.
- Color Markings For Pressure Setting: Different pressures need to be set for processing different materials. With color markings quickly matching each material pressure level, the pressure can be easily adjusted according to the material type.
- Easy Positioning Adjustment: Users can easily adjust the position of materials with the lower knob.
- Aligning Grids For Precise Process: Align the material with the grids on the conveyor feeder and convey the material to the device, so that the material is parallel to the conveying direction.
Technology Requirements/Specifications:
- Package Size: 29.8''*10.7''*8.5'' (757*271×*216mm)
- Product Size: 24.7''*7.9''*5.3'' (628*200*135mm)
- Product Weight: 7.8kg
- Max Speed: 160mm/s
- Work Area:
- Maximum Processing Area: 118''×18.5'' (3000*470mm)
- Maximum Material Width: 21.5'' (545mm)
- Minimum Material Width: 2.5'' (65mm)
- Minimum Material Thickness: 0.55'' (14mm)
